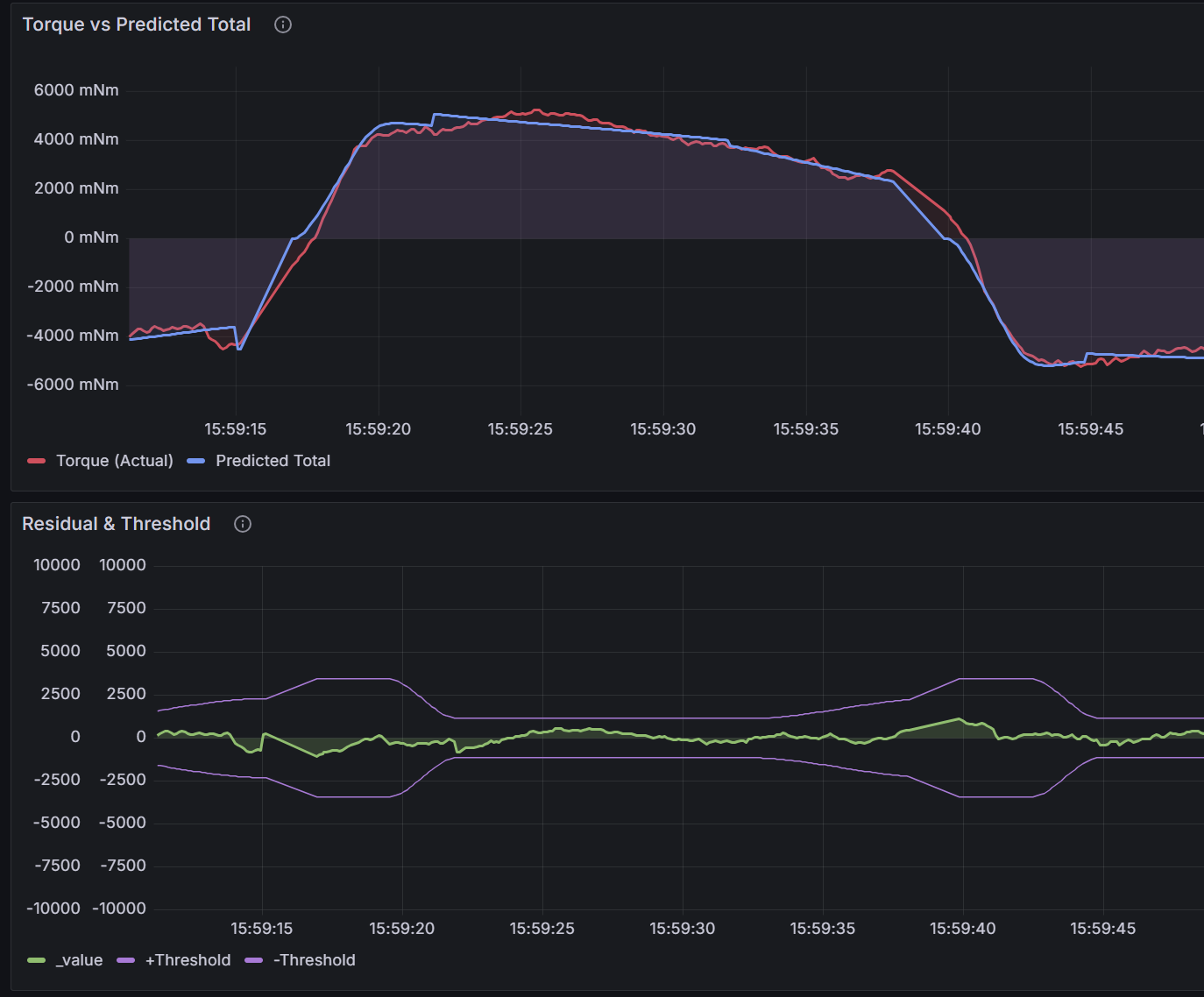

The top chart shows actual torque (red) vs predicted torque (blue). The prediction closely tracks actual torque across all phases — acceleration, cruise, and deceleration. The bottom chart shows the residual (green) staying well within the ±threshold bands (purple). With the threshold set at approximately 1 Nm (1000 mNm), the system can sensitively detect even minor collisions while maintaining zero false positives during normal operation.

---

Context

Two products operate under environment-dependent load conditions:

• Ceily (robotic bed): Load changes when bedding is replaced (e.g., summer → winter bedding).
• Wally (wall-mounted system): Open/Close torque profile changes when installation slope differs (e.g., buildings on floating structures).

Torque is read directly from the motor driver.

Goal: Predict nominal torque reliably across these environment shifts and isolate abnormal torque (collision/obstruction) using residuals.

Why this is hard: Environment changes invalidate fixed torque models—the system must adapt online without retuning.

---

Core Problem

Residual-based detection only works if the predictor outputs a clean estimate of “what torque should be” in normal operation.

Three issues made this difficult:

1. Measured inputs contaminate the predictor

   If measured accel/jerk are used directly, disturbances (contact/obstruction) leak into the feature space. The model starts explaining abnormal torque as normal → residual shrinks → detection weakens.

2. Command ≠ applied motion (especially in S-curve acceleration)

   Even when commands are simple (e.g., accel is linear, jerk is constant), the real system applies them smoothly:

   • accel command (1st order) manifests as a cubic-like applied profile
   • jerk command (0th order) manifests as a quadratic-like applied profile

   A predictor that uses raw command values without capturing the applied shape produces phase-dependent error, causing residual swings and false positives.

3. Torque dynamics are phase-dependent: Acceleration, cruise, and deceleration have different dominant factors. A single regime (“one-size-fits-all”) model produces residual spikes at transitions → false positives.

Key insight

To keep residual meaningful, nominal torque must be predicted from command context that matches the applied motion, not measured values:

• Predicted torque = nominal torque from commanded motion context
• Measured torque = nominal + abnormal
• Residual = abnormal component (what we want to isolate)

This required building clean, normalized command-derived pattern features (0–1 range) that represent how accel/jerk are actually applied during S-curve motion.

---

Approach

1) Accel-phase feature engineering: command-to-applied mapping

I decomposed accel-phase torque to recover how commands manifest in the real system:

1. Remove S-curve velocity contribution from measured torque
2. Remove linear accel contribution
3. Remaining signal = S-curve curvature (two quadratic segments, consistent with jerk-limited motion)

Applied-shape mapping:

• accel command (1st order) → cubic-like profile
• jerk command (0th order) → quadratic-like profile

Generated normalized pattern features a_pattern, j_pattern ∈ [0,1]—regression learns coefficients automatically. Result: ~99% accurate accel estimation, stabilizing nominal torque prediction.

---

2) Phase-aware nominal torque model (TorqueContext)

Input vector changes based on SpeedController state:

Phase	Input	Rationale
Accel	[v_cmd, a_pattern, j_pattern, 0]	Applied-shape–aware command context
Cruise	[v_cmd, Δt, 0, 0]	Friction settles over time; Δt captures decay
Decel	[τ_preDecel, Δt, 0, 0]	Friction-dominated; anchored by pre-decel torque

---

3) Online regression with outlier-robust learning

Weighted Least Squares prevents “learning collisions as normal”:

• If |residual| > sensitivity → outlier weight 0.1, else normal weight 1.0
• High-residual events influence model minimally; normal updates stay responsive

---

4) Stability gating

• Suppress residual-based detection during initial learning (parameters still drifting)
• Learning complete when θ change rate < 0.5% for 10+ cycles
• Learning-phase protection: Use last accel torque as estimated_max_torque—compare against max rather than unstable residual, providing coverage before convergence

---

Tradeoffs & Limitations

• Delayed full monitoring: Stability gating requires 10+ stable cycles before enabling residual-based detection—mitigated by max-torque comparison during learning.
• Outlier influence: Outlier weight is 0.1 (not 0), so repeated collisions can still slowly shift the model.
• Phase transition sensitivity: τ_preDecel capture depends on accurate phase detection; jitter at transitions can affect decel baseline.

---

Results

• False positives: 0 observed in field deployment testing
• Accel-phase estimation: ~99% accuracy (command-to-applied matching)
• Sensitivity: detects impacts down to ~1N equivalent (estimated from controlled impact tests)
• Detection latency: ~150 ms (3 cycles × 50 ms control period)
• Safety response: Emergency state, ≤500 ms stop
• User feedback: red LED pulse for 5 seconds

---

Key Takeaway

Predicting nominal torque from applied-shape–aware command context (not measured signals) keeps residuals meaningful for collision detection.

I achieved this by:

• Accel-phase component extraction + normalized pattern features (0–1)
• Phase-aware inputs (Accel/Cruise/Decel) with 4-dimensional input vector
• Outlier-robust online learning (weighted updates: 1.0 normal, 0.1 outlier)
• Stability gating (enable monitoring after θ converges at <0.5% for 10+ cycles)
