Context

Two Rovothome products have different hardware but share the same motion control flow:

• Ceily (robotic bed): Single motor, limit switches, vertical travel
• Wally (wall-mounted lift): Dual motors (left/right wheels), limit switches + dual-motor angle synchronization

Both follow the same pattern: Activate/Deactivate command → moving → limit reached → stopped, with Emergency entry on collision detection.

Goal: Share state transition logic across both products while keeping product-specific motor control and safety logic independent.

---

Core Problem

1. Different hardware per product — Both use limit switches for end-position detection, but Wally additionally requires dual-motor angle synchronization. State transitions are identical; sensor inputs and motor control differ.
2. Torque-based collision detection — Each moving state runs a torque model (with acceleration, constant-velocity, and deceleration phases) to detect obstructions. The model parameters and thresholds differ between products.
3. Real-time constraints — The state machine ticks periodically (100ms for Ceily, 150ms for Wally) in a FreeRTOS task. Transitions must be deterministic.

---

Approach

State Pattern (function pointers in C)

Each state is a struct of function pointers — the C equivalent of the State pattern:

struct MotionState {
  void (*enter)(MotionStatePtr*, uint8_t state_from);
  void (*exit)(MotionStatePtr*, uint8_t state_to);
  void (*tick)(MotionStatePtr*, const void* context);
  void (*open_command_handler)(MotionStatePtr*, uint8_t sender);
  void (*close_command_handler)(MotionStatePtr*, uint8_t sender);
  void (*stop_command_handler)(MotionStatePtr*, uint8_t sender);
  uint8_t state;
};

Eight states (Init, Stop, Activating, Deactivating, Activated, Deactivated, Emergency, Manual) each provide their own handler implementations. The main loop processes commands from a queue, then calls tick() on the current state at each interval. State transitions happen by swapping the current_state pointer, with exit() and enter() called automatically.

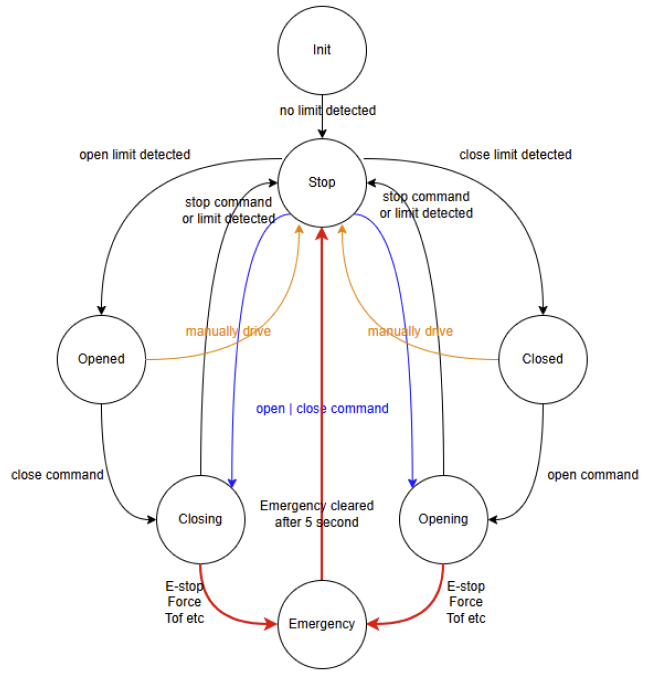

State Transitions

The internal enum uses Activating/Deactivating/Activated/Deactivated, mapped to product terms (Ceily: MoveUp/MoveDown/Up/Down; Wally: Opening/Closing/Opened/Closed).

State	Description	Transition
Init	Post-boot. Clears motor alarms	→ Stop (on first tick)
Stop	Intermediate position	Activate/Deactivate → Activating/Deactivating
Activating	Moving toward activated position	Limit detected → Activated; any command → Stop
Deactivating	Moving toward deactivated position	Limit detected → Deactivated; any command → Stop
Activated	Fully activated position	Deactivate → Deactivating
Deactivated	Fully deactivated position	Activate → Activating
Emergency	Safety event triggered	Auto → Stop after hold period (3–5s), or command to clear
Manual	User physically moving the device	Auto → Stop when manual input ends

Product-Agnostic Architecture (device_ops)

The common motion controller receives product-specific implementations through a device_ops_t interface:

typedef struct {
  void (*init_states)(void (*cb)(uint8_t, uint8_t));
  MotionState* init_state;
  bool (*check_ready)(void);
  void (*read_sensors)(void);
  void (*apply_velocity)(void);
  bool (*is_moving)(uint8_t state);
  void (*clear_alarms)(void);
  void (*on_position_changed)(uint8_t pct);
  void (*on_manual_tick)(void);
} device_ops_t;

Ceily and Wally each implement this interface. The common component (common_components/motion_controller/) contains the state machine core (motion_controller.c, motion_state.c), shared states (init_state.c, manual_state.c), and shared utilities (kinematics_base.c, speed_config.c). Product-specific states (stop_state.c, emergency_state.c, opening_state.c, etc.) live in each product’s states/ directory.

Emergency Handling

On Emergency entry:

1. Controlled deceleration — StopMission(500ms) ramp-down
2. LED feedback — LED pattern mapped to error code
3. Motor disable — Power cut after deceleration completes
4. Auto-recovery — Transitions to Stop after a hold period (Ceily: 3s, Wally: 5s)
5. Command override — Activate/Deactivate command during Emergency clears the state (Ceily transitions to Stop; Wally transitions directly to the commanded direction if motors have stopped)

---

Tradeoffs

Decision	Rationale	Cost
C function pointers vs C++ virtual	ESP-IDF is C-based, FreeRTOS compatibility	Less type safety, manual initialization
Separate file per state	Each state independently modifiable	More files (2 per state: .c/.h)
Emergency auto-recovery (3–5s)	Handles transient events (light contact) gracefully	Persistent obstructions cause repeated entry
device_ops dependency injection	Clean separation of common and product code	Indirect call overhead (negligible)

---

Results

• Code reuse: 6 files in common_components/motion_controller/ shared across both products without modification
• Product extensibility: Adding Wally required implementing its state handlers and device_ops — zero changes to the common core
• Collision detection: Three-phase torque model (acceleration / constant-velocity / deceleration) detects obstructions in real time and triggers Emergency
• Safety: Controlled stop within 500ms, automatic motor disable, product-configurable recovery timeout
• Reliability: Zero state machine-related field bugs across deployed units
